Cable Breakout Boots

IEP, is the main official distributor and supplier in Malaysia of DSG-Canusa’s all kind of Heat Shrink Tube. We provides a variety of solution across all industries for indoor and outdoor heat shrink tube Malaysia from single wall, dual wall, medium wall, heavy wall as well as military certified heat shrink tube products range.


Enquire Now

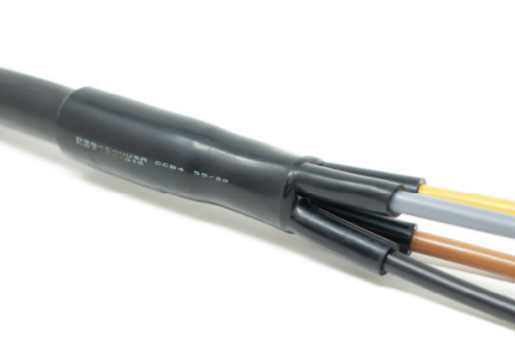

IEP DSG-CANUSA Cross-linked Polyolefin Cable Breakout Boots

Heat shrink boots seal and protect multi-conductor cable and conduit breakouts.

Features & Benefits:
  • Strain relief and mechanical protection
  • Resistant to fluids and solvents
  • Thermoplastic adhesive liner provides complete environmental protection and insulation
  • Anti-track medium voltage breakouts and semi-conductive breakouts available on request
  • Shrink ratio: 3:1
  • Continuous operating temperature: -40°C to 100°C
  • Shrink temperature: 125°C min.
  • IEC 62677
  • ESI 09-11
Typical Applications:
  • Strain relief for multi-core cables
  • Moisture sealing and environmental protection
  • Sealing and protecting wire connections in electrical vehicles
