Exd Conduit Fittings

IEP, a Malaysia-based industrial electrical power products, provides a variety of explosion proof electrical equipments ranging from Exd, Exde, Exe, Exn, Ex ia Ex p, Ex q, Ex m, etc.

Enquire Now
FeaturesCatalogues

IEP, the Malaysia main electrical conduit fittings suppliers, supply all kind of conduit fittings system with local stock support inclusive explosion proof conduit fittings. Our technical team will assist in design and reengineering to maximize the customer benefits to meet the project requirements and save cost.

IEP FEAM LBH-LBHF-LBHS-EKC Open bends and pulling boxes electrical conduit fittings suppliers

Installation: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 / 22 (Dusts)
Classification: Group II – Category 2G 2D

REFERENCE STANDARDS
Directive 94/9/EC (until April 19th, 2016) and Directive 2014/34/EU (from April 20th, 2016)
EXECUTION:
II 2 G Ex d IIC Gb
II 2 G Ex e IIC Gb
II 2 D Ex t IIIC Db
RULES OF COMPLIANCE: EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-7; EN/IEC 60079-31
EC Type-Examination Certificate: TÜV 12 ATEX 104523U
PROTECTION DEGREE: IP66
AMBIENT TEMPERATURE: -60°C ÷ +130°C
OTHER AVAILABLE CERTIFICATES:
IECEx: IECEx TUN 12.0025U
INMETRO: CEPEL 13.2229U
EAC: TC RU C-IT.ГБ08.В 01624
RINA: ELE18111CS_015
RUSSIAN MARINE CERTIFICATE (RMRS): 13.03518.315
UL NEC-505: 20131204-E465038

Mechanical characteristics
Body / cover: Marine grade copper free aluminum light alloy
Screws: Galvanized steel

Applications
OPEN BENDS AND PULLING BOXES ARE USED FOR THE WIRING IN ELECTRICAL CONDUIT PLANTS..
PROVIDING FOR A GAP ON THE BACK IS MORE ‘EASY INSPECTION AND THE INCLUSION OF ELECTRIC CABLES.

On Request Accessories:

  • Different thread from standard
  • Stainless steel screws
  • Painting

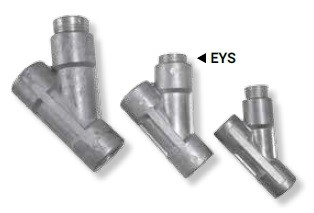

IEP FEAM EYS-EZS-EZD-RMF-RFF Sealing fittings and three pieces union explosion proof conduit fittings

Installation: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 / 22 (Dusts)
Classification: Group II – Category 2G 2D

REFERENCE STANDARDS
Directive 94/9/EC (until April 19th, 2016) and Directive 2014/34/EU (from April 20th, 2016)
EXECUTION:
II 2 G Ex d IIC Gb
II 2 D Ex tb IIIC Db
RULES OF COMPLIANCE: EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 61241-0; EN/IEC 61241-1
EC Type-Examination Certificate:
ICEPI 11 ATEX 03C002 (sealing fittings)
INERIS 12 ATEX 0069X (three pieces union)

PROTECTION DEGREE:
IP66 (sealing fittings)
IP66/IP67 (three pieces union)

AMBIENT TEMPERATURE: -20°C ÷ +60°C
OTHER AVAILABLE CERTIFICATES:
IECEx: IECEx INE 12.0051X (three pieces union)
INMETRO: CEPEL 13.2243U (three pieces union)
EAC: TC RU C-IT.ГБ08.В 01624 (-60°C ÷ +80°C)
RUSSIAN MARINE CERTIFICATE (RMRS): 13.03518.315
UL NEC-505: 20131204-E465038 (three pieces union)

SEALING FITTINGS – Mechanical characteristics
Material: Marine grade copper free aluminium light alloy

THREE PIECE UNIONS – Mechanical characteristics
Material: Galvanized steel
Gasket: Silicon rubber EPDM

On Request Accessories:

  • Different threads from standard
  • Different materials from standard
IEP FEAM RE-REB-REM-REN Explosion proof conduit fittings reducers and adaptors

Installation: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 / 22 (Dusts)
Classification: Group II – Category 2G 2D

REFERENCE STANDARDS
Directive 94/9/EC (until April 19th, 2016) and Directive 2014/34/EU (from April 20th, 2016)
EXECUTION:
II 2 G Ex d IIC Gb
II 2 G Ex e IIC Gb
II 2 D Ex t IIIC Db
RULES OF COMPLIANCE: EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-7; EN/IEC 60079-31
EC Type-Examination Certificate: TÜV 12 ATEX 104523U
PROTECTION DEGREE: IP66
AMBIENT TEMPERATURE: -60°C ÷ +130°C
OTHER AVAILABLE CERTIFICATES:
IECEx: IECEx EXA 13.0001U
INMETRO: CEPEL 13.2223U
EAC: TC RU C-IT.ГБ08.В 01624
RINA: ELE18111CS_015
RUSSIAN MARINE CERTIFICATE (RMRS): 13.03518.315
UL NEC-505: 20131204-E465038

Mechanical characteristics
Reducers materials: Galvanized steel (AZ)
Adaptors materials: OT-58 marine brass (OT) – nichel plated brass (ON) – AISI-316L stainless steel (IX) – galvanized steel (AZ)
Finishes: Full nickel plating treatment (brass material only)
Gasket: Silicon rubber EPDM / NYLON

Applications
EXPLOSION PROOF REDUCER AND ADAPTORS ARE USED TO CONNECT VARIOUS EQUIPMENT: ENCLOSURES, LIGHTING FIXTURES,
JUNCTION AND PULLING BOXES ECT. OF DIFFERENT DIAMETERS AND THREADS

On Request Accessories:

  • Different threads from standard
  • Different materials from standard
  • Silicon Rubber Gaskets
IEP FEAM PLG – NP – EM… electrical conduit fittings suppliers inclusive locknuts, bushings, drain / breather valves

Installation: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 / 22 (Dusts)
Classification: Group II – Category 2G 2D

REFERENCE STANDARDS
Directive 94/9/EC (until April 19th, 2016) and Directive 2014/34/EU (from April 20th, 2016)
EXECUTION:
II 2 G Ex d IIC Gb
II 2 G Ex e IIC Gb
II 2 D Ex b IIIC Db
RULES OF COMPLIANCE: EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-7; EN/IEC 60079-31
EC Type-Examination Certificate: TÜV 12 ATEX 104523U
PROTECTION DEGREE: IP66
AMBIENT TEMPERATURE: -60°C ÷ +130°C
OTHER AVAILABLE CERTIFICATES:
IECEx: IECEx TUN 12.0025U
INMETRO: CEPEL 13.2219U (plug)
CEPEL 13.2221U (drain breather valve)
CEPEL 13.2225U (nipples and coupling)
CEPEL 13.2227U (elbows)
EAC: TC RU C-IT.ГБ08.В 01624
RINA: ELE18111CS_015
RUSSIAN MARINE CERTIFICATE (RMRS): 13.03518.315
UL NEC-505: 20131204-E465038
(1) REMARK: locknuts DL type and bushings TB-DBT type are not covered by ex certificate

Mechanical characteristics
PLUGS – LOCKNUTS

Material – plugs:
Marine grade copper free aluminum lightalloy – galvanized steel – stainless steel – nickel plated brass

Material – locknuts:
Galvanized steel – stainless steel- nickel plated brass – aluminium

ELBOWS – BUSHINGS
Material: Marine grade copper free aluminum light alloy – galvanized steel
Screws: Stainless steel (DBT only)

NIPPLES – COUPLINGS
Material: Galvanized steel – stainless steel (nipples only)

DRAIN/BREATHER VALVES
Material: Stainless steel AISI 316L
Gasket: Silicon rubber

On Request Accessories:

  • Different threads from standard
  • Different metal materials from standard
